Specifications

Models

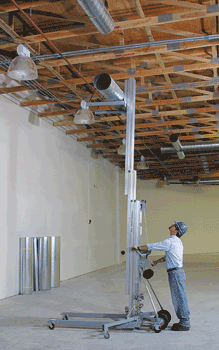

SLC-12

MEASUREMENTS

US

Working height:

Standard forks – forks down

11 ft 2 in

Standard forks – forks up

12 ft 11 in

Adjustable forks – forks down

11 ft 2 in

Adjustable forks – forks up

12 ft 11 in

Boom

12 ft 2 in

A. Height – stowed

7 ft 2 in

B. Length – stowed

2 ft 10 in

C. Length - operating

5 ft 3 in

D. Width – stowed

- with stabilizers lowered

2 ft 7.5 in

5 ft 6 in

PRODUCTIVITY

Load capacity:

14 in load center

650 lbs

24 in load center

425 lbs

42 in load center

180 lbs

E. Ground clearance

2 in

Load height minimum

6 in

POWER

Average cranks:

Standard winch

8.5 cranks/ft

Two speed winch, high

4 cranks/ft

Two speed winch, low

15 cranks/ft

WEIGHT

Standard

225 lbs

Load Handling Attachments

MEASURMENTS (l/w/d)

US

Weight - US

Standard forks

28/23/2.5 in

26.5 lbs

Adjustable forks

27.5/12-30/2.5 in

52.5 lbs

Fork extensions detached (each)

30/2/3 in

4.5 lbs

Fork extensions attached (each)

25/2/3 in

4.5 lbs

Boom

18-42/1.5/6 in

39.9 lbs

Pipe cradle

27/24/6 in

10 lbs

Load platform

26.3/23/2.5 in

31.5 lbs

Features

Easily Configured to Meet Your Needs

FORK OPTIONS

Standard forks

Adjustable forks

Fork extensions

Boom

Pipe cradle

Load platform

POWER OPTIONS

One-speed manual winch

Two-speed manual winch

BASE OPTIONS

Standard base

Stabilizer set

Standard Features

MEASUREMENTS

SLC-12

12 ft 11 in maximum working height

Up to 650 lb lift capacity

PRODUCTIVITY

Standard forks

Heavy-duty design

Strong, lightweight aluminum telescoping mast

Single door access

Quick set up requires no tools

Interchangeable load handling attachments

Non-marking 4 in front casters and 5 in rear casters with side brakes

Rear transport wheel assembly

Glide rails allow easy loading and unloading, on or off a vehicle, for transport

Hold-down bar secures mast assembly during transport

Captive stabilizer set (standard on SLC-18, -24)

POWER

One speed manual winch
