Genie Lift

Item Name:

Genie Lift

Item #:

GEN-SLA-25

Average Rating:

Product Image Gallery:

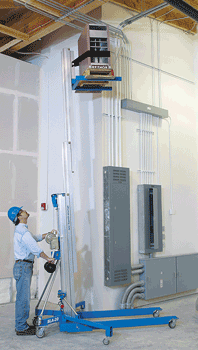

This unit is to represent the lift series and may not be the exact lift.

Specifications
Models		SLA-25
MEASUREMENTS		US
Working height:
Standard forks – down		24 ft 4 in
Standard forks – up		26 ft .5 in
Adjustable forks – down		24 ft 4 in
Adjustable forks – up		26 ft .5 in
Flat forks		N/A
boom		24 ft 4 in
Load platform – forks down		24 ft 4 in
Load platform – forks up		26 ft .5 in
A. Height – stowed		6 ft 6.5 in
B. Length – stowed		2 ft 5 in
C. Length - operating		6 ft 10 in
D. Width – stowed - with stabilizers lowered		2 ft 7.5 in 6 ft 1 in
Width – straddle base Minimum: Maximum: Maximum inside:		N/A
E. Ground clearance – center		2 in
F. Load height minimum		6 in
PRODUCTIVITY
Load capacity:
18 in load center		650 lbs
24 in load center		450 lbs
42 in load center		250 lbs
POWER
Average cranks:
Standard winch		8.5 cranks/ft
Two speed winch, high		4 cranks/ft
Two speed winch, low		15 cranks/ft
WEIGHT
Standard		450 lbs
Straddle base		N/A
Load Handling Attachments
MEASURMENTS (l/w/d)	US		Weight - US
Standard forks	27/23/2.5 in		38.9 lbs
Adjustable forks	27.5/12-30/2.5 in		52.5 lbs
Fork extensions detached (each)	30/2/3 in		4.5 lbs
Fork extensions attached (each)	25/2/3 in		4.5 lbs
Flat forks	32/16/31/1.5 in		80.1 lbs
Boom	18-42/1.5/6.5 in		39.9 lbs
Pipe cradle	27/24/6 in		10 lbs
Load platform	27.5/23/2.75 in		31.5 lbs

Features

Easily Configured to Meet Your Needs

FORK OPTIONS

Standard forks

Adjustable forks

Fork extensions

Flat forks (SLA-5,-10,-15 only)

Boom

Pipe cradle

Load platform

POWER OPTIONS

One-speed manual winch

Two-speed manual winch

BASE OPTIONS

Standard base

Straddle base (SLA-5,-10,-15 only)

Stabilizer set (standard on SLA-20,-25, not available on straddle base)

CASTER & BRAKE OPTIONS

Rear transport wheel assembly

Standard Features

MEASUREMENTS

SLA-25

26 ft .5 in maximum working height

Up to 650 lb load capacity

PRODUCTIVITY

Heavy-duty design

Patented telescoping mast system

Captive stabilizer set (standard on SLA-20,-25)

Rolls easily through single door in upright position

Quick set up requires no tools

Interchangeable load handling attachments

Maneuverable 4 in front casters and 5 in rear casters, with 4-way swivel locks and side brakes, are standard

Compact design, legs fold up for easy storage

Roller wheels allow easy transport in stowed position

Easy to load and unload on or off a vehicle for transport

Hold-down bar secures mast assembly during transport
