Specifications

Models

ST-20

MEASUREMENTS

US

A. Height – stowed

6 ft 6.75 in

B. Length – stowed

2 ft 1.25 in

C. Width – stowed

1 ft 10 in

D. Load height minimum

6 in

E. Ground clearance – center

2 in

Working height – forks up

-forks down

21 ft 2.5 in

19 ft 6 in

PRODUCTIVITY

Load capacity – at 18 in load center

800 lbs

Length – adjustable forks

27.5 in

Width – adjustable forks

11.5-30 in

Fork extensions detached each (l/w/d)

30/2/3 in; 4.5 lbs

Fork extensions attached each (l/w/d)

25/2/3 in; 4.5 lbs

Weight – adjustable forks

52.5 lbs

Outrigger footprint

73.5 x 79.5 in

Caster

Standard casters

POWER

Average cranks: standard winch

-two speed winch, high

-two speed winch, low

8.5 cranks/ft

4 cranks/ft

15 cranks/ft

WEIGHT

Weight:

507 lbs

Features

Easily Configured to Meet Your Needs

FORK OPTIONS

Load platform

Fork extensions

POWER OPTIONS

One-speed manual winch

Two-speed manual winch

BASE

Standard base

CASTER

Standard casters

Standard Features

MEASUREMENTS

ST-20

21 ft 2.5 in maximum working height

Up to 800 lb load capacity

PRODUCTIVITY

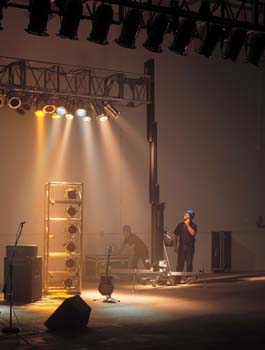

Use as a single unit, or two or more can be used together to support trusses

Flat black anodized finish is nearly invisible to audience

Portable and compact design

Lightweight, durable aluminum construction

Single-door access

Easy set-up with no tools required

Durable steel forks

Hand winch locks in place when handle is released

Easy to transport – no bulky base

Hold-down mechanism secures carriage during transport
