We are your source for Scissor Man Lifts.

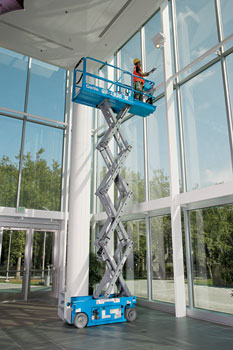

Genie Lift - Non-Marking Tires
Item Details
Genie Lift - Non-Marking Tires
Item Name:
Genie Lift - Non-Marking Tires
Item #:
GEN-GS-3246
Average Rating:

Product Image Gallery:

Setup fees may apply, please contact us for details.

Folding rails with full height swing gate.

Specifications



MODELS

GS-3246

MEASUREMENTS

US

Working height maximum

38 ft

A. Platform height maximum

32 ft

B. Platform height stowed

4 ft 2.75 in

C. Platform length – outside

                               -extended

7 ft 5 in

10 ft 5 in

Slide-out platform extension deck

3 ft

D. Platform width – outside

3 ft 9.3 in

Guardrail height

3 ft 7 in

Toeboard height

6 in

E. Height – stowed:

             Folding guardrails (CE)

              Rails folded



7 ft 10 in

5 ft 11 in

F. Length – stowed

    Length - extended

7 ft 11 in

10 ft 10.5 in

G. Width

3 ft 10 in

H. Wheelbase

6 ft 1 in

I. Ground clearance – center

4 in

J. –with pothole guards deployed

.75 in

PRODUCTIVITY



Maximum platform occupancy

2

Lift capacity

Lift capacity – extension deck

700 lbs

250 lbs

Drive speed – stowed

2.2 mph

Drive speed – raised

0.5 mph

Gradeability – stowed

25%

Turning radius – inside

Zero

Turning radius – outside

7 ft 6 in

Raise/lower speed

57/35 sec

Controls

Proportional

Drive

dual front wheel

Multiple disc brakes

dual rear wheel

Tires – solid non-marking

15 x 5 x 11 in

POWER



Power source

24 V DC (four 6 V 225 Ah batteries)

Hydraulic system capacity

4.55 gal

WEIGHT



ANSI/CSA

5,211  lbs

CE/AUS

6,200  lbs

STANDARDS COMPLIANCE

ANSI A92.6, CSA B354.2, CE Compliance, AS 1418.10

Features

Standard Features

MEASUREMENTS

GS-3246

38 ft (11.75 m) working height

Up to 700 lb (318 kg) lift capacity

PRODUCTIVITY

89 x 45.3 in (2.26 x 1.15 m) steel platform

36 in (.91 m) extension deck

Folding rails with full height swing gate

Dual front wheel drive

Universal 20 amp smart charger

Proportional lift and drive

Platform control with battery charge indicator and diagnostic display

Onboard diagnostic system

AC power to platform

Lanyard attachment points

Manual platform lowering valve

Emergency stop at both platform and ground controls

Rear wheel multiple disc brakes

Front wheel hydraulic dynamic braking

Brake release

Drive speed interlock

Swing-out component tray

Solid non-marking tires

Pothole guards

Tilt level sensor with audible alarm

Descent alarm

Electronic horn

Hour meter

POWER

24 V DC (four 6 V 225 Ah batteries)

Item Options
Automotive-style horn
GS-1 (Add $225.00)
Folding rails with half-height swing gate
GS-2 (Add $560.00)
EE rating
GS-3 (Add $800.00)
Air line to platform, 3/8 in. inner diameter
GS-4 (Add $825.00)
Biodegradable hydraulic fluid (for GS-1530 & GS-1930)
GS-5 (Add $275.00)
Biodegradable hydraulic fluid (for GS-2032, GS-2632, GS-2046 & GS-2646)
GS-6 (Add $275.00)
Biodegradable hydraulic fluid (for GS-3232 & GS-3246)
GS-7 (Add $325.00)
Power inverter
GS-8 (Add $2,900.00)
Panel mounted, recessed charger receptacle
GS-9 (Add $62.00)
Platform swing gate, half-height (GS-1530, GS-1930 and GS-2032 only)
GS-10 (Add $225.00)
Motion alarm
GS-11 (Add $230.00)
Dual flashing beacons
GS-12 (Add $380.00)
