Item Details

Item Name:

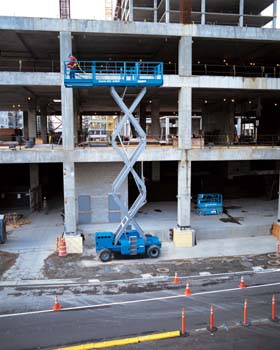

Genie Lift - 4WD

Item #:

GEN-GS-3384RT

Average Rating:

Product Image Gallery:

Setup fee may apply, please contact us for details.

SPECIFICATIONS
MODEL	GS-3384 RT
MEASUREMENTS	US
Working height maximum	39 ft
A. Platform height maximum	33 ft
B. Platform height - stowed	5 ft 1 in
C. Platform length: Outside, extended – single deck Outside, extended – dual deck	13 ft .5 in 17 ft 6.25 in 21 ft 6.5 in
D. Slide-out platform extension deck- front	5 ft
E. Slide-out platform extensions deck - rear	4 ft
F. Platform width - outside	6 ft
G. Height – stowed :folding guardrails Rails lowered	8 ft 9.5 in 6 ft 6.75 in
H. Length – stowed: single deck Dual deck With outriggers	12 ft 11.25 in 13 ft 5 in 16 ft
I. Width: standard tires High flotation tires	7 ft 7 ft 11 in
J. Wheelbase	9 ft 4 in
K. Ground clearance - center	13 in
PRODUCTIVITY
Maximum platform occupancy	7
Lift capacity	2,500 lbs
Lift capacity – extension deck	500 lbs
Drive speed – stowed	4.0 mph
Drive speed – raised	0.7 mph
Gradeability – stowed	50%
Maximum outrigger leveling: front to back Side to side	7 degree 12 degree
Turning radius – inside Turning radius - outside	10 ft 1.5 in 19 ft 6 in
Raise/lower speed	45/29 sec
Controls	Proportional
Drive	Four wheel
Tires – foam-filled rough terrain	10 x 31 in
POWER
Power source	Ford DSG-423 4 cylinder gas/LPG 75 hp (56 kW) Deutz D2011L03i 3 cylinder diesel 49 hp (36 kW) air cooled
Auxiliary power unit	12V DC
Hydraulic tank capacity	30 gal
Fuel tank capacity	30 gal
WEIGHT
Weight:	12,005 lbs
With outriggers	13,680 lbs
STANDARDS COMPLIANCE:	ANSI A92.6, CSA B354.4, CE Compliance, AS 1418.10

FEATURES

STANDRD FEATURES

MEASUREMENTS

39 ft (12.06 m) working height

Up to 2,500 lb (1,134 kg) lift capacity

PRODUCTIVITY

156.5 x 72 in (3.98 x 1.83 m) steel frame platform

60 in (1.52 cm) extension deck

Replaceable aluminum deck

Folding guardrails

Proportional lift and drive

Onboard diagnostic system

AC power to platform

Full height swing gate

Two self-closing gates

4WD

Positive traction control

Four-wheel braking

Slide-out engine tray

Foam-filled rough terrain tires

Tilt level sensor with audible alarm

Descent alarm

Horn

Hour meter

POWER

12 V DC auxiliary power

Item Options

Air line to platform, 3/8 in. inner diameter

GS-3390-1 (Add $845.00)

Dual slide-out extension deck package (5 ft. front/4 ft. rear)

GS-3390-2 (Add $1,585.00)

Hydraulic oil cooler

GS-3390-3 (Add $1,615.00)

Biodegradable hydraulic fluid

GS-3390-4 (Add $1,600.00)

AC generator (110V/60Hz, 3000W or 220V/50Hz, 2500W)

GS-3390-5 (Add $3,815.00)

Welder ready package (includes hydraulic oil cooler)

GS-3390-6 (Add $7,995.00)

ArcPro 275 heavy duty welder package (includes hydraulic oil cooler)

GS-3390-7 (Add $12,510.00)

Automatic leveling hydraulic outriggers (GS-3390 and Gs-4390 only)

GS-3390-8 (Add $9,330.00)

Oscillating axle (GS-4390 and GS-5390 only)

GS-3390-9 (Add $4,615.00)

Diesel exhaust scrubber with spark arrestor

GS-3390-10 (Add $3,685.00)

All Engines

GS-3390-11 (Add $338.00)

All engines - Cold Weather Package plus artic hoses (lift hoses)

GS-3390-12 (Add $605.00)

High floatation - air-filled tires

GS-3390-13 (Add $3,508.00)

High floatation, foam-filled tires

GS-3390-14 (Add $5,085.00)

Foam-filled, non-marking, rough terrain tires

GS-3390-15 (Add $2,845.00)

Motion alarm

GS-3390-16 (Add $230.00)

Dual flashing beacons

GS-3390-17 (Add $380.00)

LPG tank only, steel, 33.5 lb capacity

GS-3390-18 (Add $510.00)
