We are your source for Telescopic Booms.
Genie Lift - 2 Speed Wheel Motors
Item Details
Genie Lift - 2 Speed Wheel Motors
Item Name:
Genie Lift - 2 Speed Wheel Motors
Item #:
GEN-S-60HC-2WD
Average Rating:

Product Image Gallery:

Set up fees may apply, please contact us for details.

SPECIFICATIONS



MODEL

S-60HC

MEASUREMENTS

US

Working height maximum

64 ft 4 in

Platform height maximum

58 ft 4 in

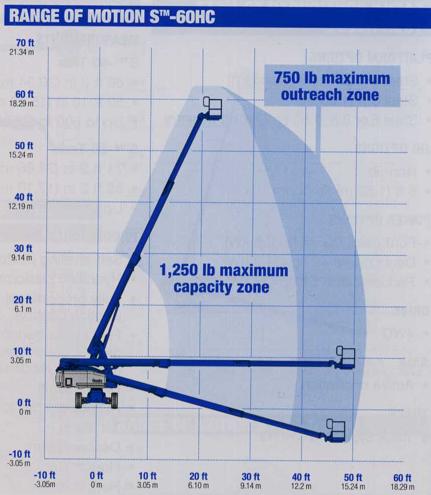

Horizontal reach maximum in 750 lb (340 kg) maximum outreach zone

50 ft 10 ft

Horizontal reach maximum in 1,250 lb (567 kg) maximum capacity zone

38 ft 11 in

Below ground reach

5 ft 7 in

A. Platform length – 8 ft model

     Platform length – 6 ft model

3 ft

2 ft 6 in

B. Platform width – 8 ft model

     Platform width – 6 ft model

8 ft

6 ft

C. Height – stowed

8 ft 11 in

D. Length – stowed

27 ft11 in

E. Width

8 ft 2 in

F. Wheelbase

8 ft 2.5 in

G. Ground clearance - center

1 ft 5 in

PRODUCTIVITY



Lift capacity – maximum outreach zone

750 lbs

Lift capacity – maximum capacity zone

1,250 lb

Platform rotation

160 degrees

Turntable rotation

360 degree continuous

Turntable tailswing

4 ft

Drive speed – 2WD stowed

Drive speed – 4WD stowed

4.0 mph

3.0 mph

Drive speed – raised or extended

0.68 mph

Gradeability – 2WD – stowed

Gradeability – 4 WD - stowed

30%

45%

Turning radius – inside

Turning radius - outside

7 ft 9 in

18 ft 2 in

Controls

12V DC proportional

Tires – RT Lug

355/55D 625

POWER



Power source

Ford DSG-423 4 cylinder gas/LPG 75 hp (56 kW)

Deutz D2011L03i 3 cylinder diesel 48 hp (35.8 kW)

Perkins 404C-22 4 cylinder diesel 51 hp (38 kW)

Auxiliary power unit

12V DC

Hydraulic tank capacity

45 gal

Fuel tank capacity

35 gal

WEIGHT



2WD

22,038 lbs

4WD

22,208 lbs

STANDARDS COMPLIANCE:

ANSI A92.5, CSA B354.4, CE Compliance, AS 1418.10

FEATURES

EASILY CONFIGURED TO MEET YOUR NEEDS

PLATFORM

Steel 8 ft (2.44 m) (standard)

Steel 6 ft (1.83 m)

Steel 6 or 8 ft (1.83 or 2.44 m) tri-entry

POWER OPTIONS

Ford gas/LPG 75 hp (56 kW)

Deutz diesel 46 hp (34.3 kW)

Perkins diesel 51 hp (38 kW)

DRIVE OPTIONS

2WD

4WD

AXLE OPTIONS

Active oscillation

Non-oscillating

TIRE OPTIONS

Rough terrain air-filled (standard)

Rough terrain foam-filled

Rough terrain non-marking (air or foam-filled)

Sealant treated air-filled

STANDARD FEATURES

MEASUREMENTS

64 ft 4 in (19.78 m) working height

40 ft 10 in (15.48 m) maximum horizontal reach with 750 lb (340 kg) load

38 ft 11 in (11.86 m) maximum horizontal reach with 1,250 lb (567 kg) load

750 lb (340 kg) platform load in maximum outreach zone

1,250 lb (567 kg) platform load in maximum capacity zone

PRODUCTIVITY

Dual capacity with automatic envelope control

Electronic platform load and position monitoring

3 person capacity deck

Self-leveling platform

Hydraulic platform rotation

Fully proportional Hall effect joystick controls

Fuel select switch on platform and ground control panels (Gas/LPG models)

Drive enable

AC power cord to platform

Tilt alarm

Descent alarm

Hour meter

Horn

360 degree continuous turntable rotation

Positive traction drive

Two speed wheel motors

Lockable platform control box cover

POWER

All engines are emissions compliant

12 V DC auxiliary power

Anti-restart engine protection

Auto engine fault shutdown

Swing out engine tray

Intake air heater (Deutz engine)

Item Options
8 ft. tri-entry steel platform
S-60HC-1 (Add $332.00)
Aircraft protection (includes platform foam padding and padded disable system)
S-60HC-2 (Add $3,940.00)
Platform swing gate
S-60HC-3 (Add $352.00)
6 ft. or 8 ft. platform 1/2 height mest inserts with swing gate
S-60HC-4 (Add $464.00)
Air line to platform, 1/2 in. inner diameter
S-60HC-5 (Add $452.00)
Platform auxiliary top rail
S-60HC-6 (Add $493.00)
Hydraulic oil cooler
S-60HC-7 (Add $774.00)
Biodegradable hydraulic fluid
S-60HC-8 (Add $1,642.00)
Fire resistant hydraulic fluid
S-60HC-9 (Add $3,844.00)
Basic hostile environment kit (cylinder bellows, boom wiper seals, platform and ground control box cover)
S-60HC-10
Deluxe diesel hostile environment kit (Basic hostile environment kit plus: center turntable shield, ring gear guard, tail pipe guard, engine cover flaps, air pre-cleaner)
S-60HC-11 (Add $3,070.00)
Deluxe dual-fuel hostile environment kit (Basic hostile environment kit plus: center turntable shield, ring gear guard, tail pipe guard, engine cover flaps)
S-60HC-12 (Add $2,744.00)
Diesel scrubber muffler with spark arrestor
S-60HC-13 (Add $2,067.00)
Intake air pre-cleaner
S-60HC-14 (Add $326.00)
AC generator (110V/60Hz, 3000W or 220V/50Hz, 2500W)
S-60HC-15 (Add $2,850.00)
Weld leads to platform
S-60HC-16 (Add $985.00)
Welder Ready package (includes hydraulic oil cooler)
S-60HC-17 (Add $5,752.00)
ArcPro 275 heavy duty welder package (includes hydraulic oil cooler)
S-60HC-18 (Add $8,191.00)
Engine gauge package (oil pressure, temp & amp)
S-60HC-19 (Add $223.00)
Second battery
S-60HC-20 (Add $367.00)
Tow package
S-60HC-21 (Add $2,085.00)
LP only (Ford engine only)
S-60HC-22 (Add $0.00)
LPS Fire protection rating (Ford engine only)
S-60HC-23 (Add $4,840.00)
Ford or Perkins (5W-40 Syn engine oil, freeze plug heater & 110V battery blanket, platform control board heater, & oversized foot switch cover)
S-60HC-24 (Add $250.00)
Deutz (5W-40 Syn engine oil, 2nd intake air heater, oil pan heater & 110V battery blanket, platform control board heater, & oversized foot switch cover)
S-60HC-25 (Add $250.00)
Rough terrain, foam-filled tires
S-60HC-26 (Add $2,184.00)
Rough terrain, non-marking air-filled tires
S-60HC-27 (Add $1,663.00)
Rough terrain, non-marking, foam-filled tires
S-60HC-28 (Add $3,967.00)
Tire sealant (air-filled tires only)
S-60HC-29 (Add $297.00)
Alarm package (includes flashing beacon and travel alarm)
S-60HC-30 (Add $370.00)
Lockable platform control box cover
S-60HC-31 (Add $1,956.00)
Tool tray
S-60HC-32 (Add $138.00)
Panel cradle package (requires tri-entry platform)
S-60HC-33 (Add $440.00)
Platform work lights (includes two 12V 36W lights)
S-60HC-34 (Add $514.00)
LPG tank, 33.5 lb capacity (Ford engine only)
S-60HC-35 (Add $285.00)
