We are your source for Telescopic Booms.
Genie Lift - Trax w/Jib
Item Details
Genie Lift - Trax w/Jib
Item Name:
Genie Lift - Trax w/Jib
Item #:
GEN-S-65TRAXWJIB
Average Rating:

Product Image Gallery:

Set up fee may apply, please contact us for details.

SPECIFICATIONS



MODEL

S-65 Trax

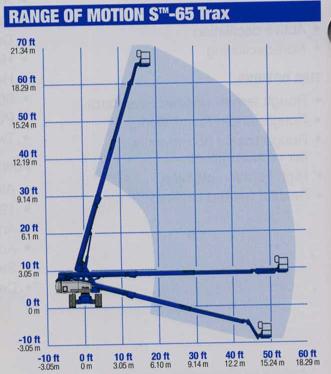

MEASUREMENTS

US

Working height maximum

71 ft 2 in

Platform height maximum

65 ft 2 in

Horizontal reach maximum

56 ft 2 in

Below ground reach

8 ft 9 in

A. Platform length – 8 ft model

     Platform length – 6 ft model

3 ft

2 ft 6 in

B. Platform width – 8 ft model

     Platform width – 6 ft model

8 ft

6 ft

C. Height – stowed

9 ft 1 in

D. Length – stowed

     Length – transport (jib tucked under)

31 ft 2 in

25 ft

E. Width

8 ft 6 in

F. Wheelbase

8 ft 2.5 in

G. Ground clearance - center

1 ft 5 in

PRODUCTIVITY



Lift capacity

500 lbs

Platform rotation

160 degree

Vertical jib rotation

135 degree

Turntable rotation

360 degree continuous

Turntable tailswing

4 ft

Drive speed – 4WD stowed

2.3 mph

Drive speed – raised or extended

0.68 mph

Gradeability – 4 WD - stowed

45%

Controls

12V DC proportional

Track system – 4 point

Loegering QTS-R42

POWER



Power source

Ford DSG-423 4 cylinder gas/LPG 75 hp (56 kW)

Deutz D2011L03i 3 cylinder diesel 46 hp (34.3 kW)

Perkins 404D-22 4 cylinder diesel 51 hp (38 kW)

Auxiliary power unit

12V DC

Hydraulic tank capacity

45 gal

Fuel tank capacity

35 gal

WEIGHT



4WD

26,960 lbs

Ground pressure

9.2 psi

STANDARDS COMPLIANCE:

ANSI A92.5, CSA B354.4, CE Compliance, AS 1418.10

FEATURES

EASILY CONFIGURED TO MEET YOUR NEEDS

PLATFORM OPTIONS

Steel 8 ft (2.44 m) (standard)

Steel 6 ft (1.83 m)

Steel 6 or 8 ft (1.83 or 2.44 m) tri-entry

JIB OPTIONS

Non-jib

5 ft (1.52 m) jib boom

POWER OPTIONS

Ford gas/LPG 75 hp (56 kW)

Deutz diesel 46 hp (34.3 kW)

Perkins diesel 51 hp (38 kW)

DRIVE

4WD

AXLE

Active oscillation

TRACK

Track system QTS-R42

STANDARD FEATURES

MEASUREMENTS

S-65 Trax

66 ft 2 in (20.34 m) working height

50 ft 10 in (15.48 m) horizontal reach

Up to 500 lb (227 kg) lift capacity

PRODUCTIVITY

Self-leveling platform

Hydraulic platform rotation

Fully proportional Hall effect joystick controls

Fuel select switch on platform and ground control panels (Gas/LPG models)

Drive enable

AC power cord to platform

Tilt alarm

Descent alarm

Hour meter

Horn

360 degree continuous turntable rotation

Positive traction drive

Two speed wheel motors

POWER

All engines are emissions compliant

12 V DC auxiliary power

Anti-restart engine protection

Auto engine fault shutdown

Swing out engine tray

Deutz intake air heater

Item Options
750 lb. capacity, S-60 Trax only
S-60TRAX-1 (Add $1,947.00)
8 ft. tri-entry steel platform
S-60TRAX-2 (Add $332.00)
Platform swing gate
S-60TRAX-3 (Add $352.00)
6 ft. or 8 ft. platform 1/2 height mesh inserts with swing gate
S-60TRAX-4 (Add $464.00)
Air line to platform, 1/ in. inner diameter
S-60TRAX-5 (Add $452.00)
Platform auxiliary top rail
S-60TRAX-6 (Add $493.00)
Hydraulic oil cooler
S-60TRAX-7 (Add $774.00)
Biodegradable hydraulic fluid
S-60TRAX-8 (Add $1,642.00)
Basic hostile environment kit (cylinder bellows, boom wiper seals, platform and ground control box cover)
S-60TRAX-9 (Add $2,363.00)
Deluxe diesel hostile environment kit (Basic hostile environment kit plus: center turntable shield, ring gear guard, tail pipe guard, engine cover flaps, air pre-cleaner)
S-60TRAX-10 (Add $3,070.00)
Deluxe dual-fuel hostile environment kit (Basic hostile environment kit plus: center turntable shield, ring gear guard, tail pipe guard, engine cover flaps)
S-60TRAX-11 (Add $2,747.00)
Diesel scrubber muffler with spark arrestor
S-60TRAX-12 (Add $2,067.00)
Intake air pre-cleaner
S-60TRAX-13 (Add $326.00)
AC generator (110V/60Hz, 3000W or 220V/50Hz, 2500W)
S-60TRAX-14 (Add $2,850.00)
Weld leads to platform
S-60TRAX-15 (Add $985.00)
Welder Ready package (includes hydraulic oil cooler)
S-60TRAX-16 (Add $5,752.00)
ArcPro 275 heavy duty welder package (includes hydraulic oil cooler)
S-60TRAX-17 (Add $8,191.00)
Engine gauge package (oil pressure, temp & amp)
S-60TRAX-18 (Add $223.00)
Second battery
S-60TRAX-19 (Add $367.00)
Ford or Perkins (5W-40 Syn engine oil, freeze plug heater & 110V battery blanket, platform control board heater, & oversized foot switch cover)
S-60TRAX-20 (Add $250.00)
Deutz (5W-40 Syn engine oil, 2nd intake air heater, oil pan heater & 110V battery blanket, platform control board heater, & oversized foot switch cover)
S-60TRAX-21 (Add $250.00)
Alarm package
S-60-TRAX-22 (Add $370.00)
Platform and ground control box covers
S-60TRAX-23 (Add $197.00)
Tool tray
S-60TRAX-24 (Add $138.00)
Panel cradle package (requires tri-entry platform)
S-60TRAX-25 (Add $440.00)
Platform work lights (includes two 12V 36W lights)
S-60TRAX-26 (Add $514.00)
LPG tank, 33.5 lb capacity (Ford engine only)
S-60TRAX-27 (Add $285.00)
