We are your source for Telescopic Booms.

Item Details

Item Name:

Genie Lift - Trax

Item #:

GEN-S-60TRAX

Average Rating:

Product Image Gallery:

Set up fee may apply, please contact us for details.

SPECIFICATIONS
MODEL	S-60 Trax
MEASUREMENTS	US

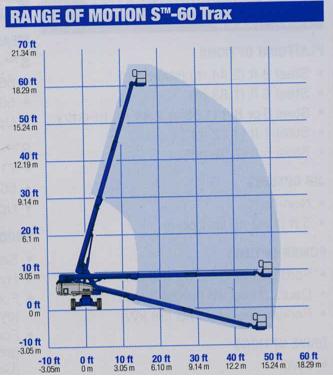

Working height maximum	66 ft 2 in
Platform height maximum	60 ft 2 in
Horizontal reach maximum	50 ft 10 in
Below ground reach	5 ft 5 in
A. Platform length – 8 ft model Platform length – 6 ft model	3 ft 2 ft 6 in
B. Platform width – 8 ft model Platform width – 6 ft model	8 ft 6 ft
C. Height – stowed	9 ft 1 in
D. Length – stowed Length – transport (jib tucked under)	27 ft 11 in N/A
E. Width	8 ft 6 in
F. Wheelbase	8 ft 2.5 in
G. Ground clearance - center	1 ft 5 in
PRODUCTIVITY
Lift capacity	500 lbs
Platform rotation	160 degrees
Vertical jib rotation	N/A
Turntable rotation	360 degree continuous
Turntable tailswing	4 ft
Drive speed – 4WD stowed	2.3 mph
Drive speed – raised or extended	0.68 mph
Gradeability – 4 WD - stowed	45%
Controls	12V DC proportional
Track system – 4 point	Loegering QTS-R42
POWER
Power source	Ford DSG-423 4 cylinder gas/LPG 75 hp (56 kW) Deutz D2011L03i 3 cylinder diesel 46 hp (34.3 kW) Perkins 404D-22 4 cylinder diesel 51 hp (38 kW)
Auxiliary power unit	12V DC
Hydraulic tank capacity	45 gal
Fuel tank capacity	35 gal
WEIGHT
4WD Ground pressure	25,380 lbs 9.2 psi
STANDARDS COMPLIANCE:	ANSI A92.5, CSA B354.4, CE Compliance, AS 1418.10
