We are your source for Telescopic Booms.

Item Details

Item Name:

Genie Lift - 4 WD

Item #:

GEN-S-80-4WD

Average Rating:

Product Image Gallery:

Set up fees may apply, please contact us for details.

SPECIFICATIONS
MODEL	S-80
MEASUREMENTS	US

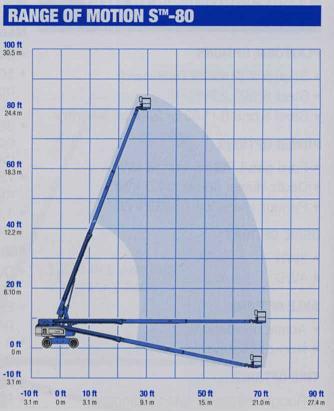

Working height maximum	86 ft
Platform height maximum	80 ft
Horizontal reach maximum	71 ft 6 ft
Below ground reach	6 ft 1 in
A. Platform length – 8 ft model Platform length – 6 ft model	3 ft 2 ft 6 in
B. Platform width – 8 ft model Platform width – 6 ft model	8 ft 6 ft
C. Height – stowed	9 ft 2 in
D. Length – stowed Length – transport (jib tucked under)	36 ft 6 in N/A
E. Width	8 ft 2 in
F. Wheelbase	9 ft 4 in
G. Ground clearance - center	13 in
PRODUCTIVITY
Lift capacity – 8 ft platform Lift capacity – 6 ft platform	500 lbs 500 lbs
Platform rotation	160 degrees
Vertical jib rotation	N/A
Turntable rotation	360 degree continuous
Turntable tailswing	4 ft 8 in
Drive speed – stowed – 2WD/4WD Drive speed – raised/extended	3.5 mph 0.68 mph
Gradeability – 2WD – stowed Gradeability – 4WD - stowed	30% 45%
Turning radius – axle extended: inside outside	12 ft 21 ft 6 in
Controls	12V DC proportional
Tires – RT lug	Foam filled 18-625, 16 ply
POWER
Power source	Deutz TD 2011 L04i 4-cylinder turbocharged diesel, 74 hp (55 kW) Perkins 804D-33 4-cylinder diesel, 63 hp (47 kW) Continental TME27 4 cylinder Gasoline/LPG 74 hp (55 kW)
Auxiliary power unit	12V DC
Hydraulic tank capacity	40 gal
Fuel tank capacity – diesel	35 gal
Fuel tank capacity – gas/LPG	30 gal
WEIGHT
2WD	35,400 lbs
4WD	35,500 lbs
STANDARDS COMPLIANCE:	ANSI A92.5, CSA B354.4, CE Compliance
