We are your source for Telescopic Booms.
Genie Lift - 4 Wheel Drive
Item Details
Genie Lift - 4 Wheel Drive
Item Name:
Genie Lift - 4 Wheel Drive
Item #:
GEN-S-100
Average Rating:

Product Image Gallery:

Set up fees may apply, please contact us for details.

SPECIFICATIONS



MODEL

S-100

MEASUREMENTS

US

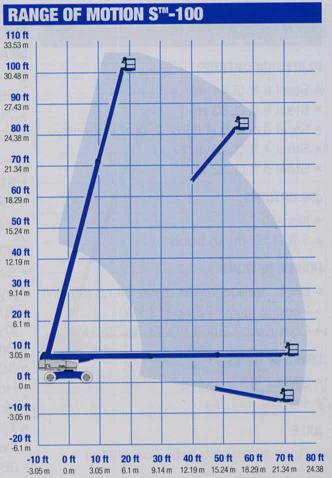

Working height maximum

106 ft

Platform height maximum

100 ft

Horizontal reach maximum

75 ft

Below ground reach

6 ft 6 in

A. Platform length – 8 ft model

     Platform length – 6 ft model

3 ft

2 ft 6 in

B. Platform width – 8 ft model

     Platform width – 6 ft model

8 ft

6 ft

C. Height – stowed

10 ft 1 in

D. Length – stowed

     Length – transport (jib tucked under)

42 ft 8 in

N/A

E. Width – axle retracted

     Width – axle extended

8 ft 2 in

11 ft

F. Wheelbase

12 ft

G. Ground clearance - center

1 ft 5.5 in

PRODUCTIVITY



Lift capacity

750 lbs

Platform rotation

160 degrees

Vertical jib rotation

N/A

Turntable rotation

360 degree continuous

Turntable tailswing – axle retracted

Turntable tailswing – axle extended

5 ft 6 in

4 ft

Drive speed – stowed

Drive speed – raised or extended

3.0 mph

0.68 mph

Gradeability – stowed

40%

Turning radius – axle retracted: inside

                                                   outside

13 ft 7 in

21 ft 7 in

Turning radius – axle extended: inside

                                                   outside

9 ft

19 ft 10 in

Controls

12V DC proportional

Tires – RT lug

385/65D 22.5

POWER



Power source

Deutz TD 2011 L04i 4-cylinder turbo diesel, 74 hp (55 kW)

Perkins 804-33T 4-cylinder turbo diesel, 83 hp (62 kW)

Cummins B3.3T 4-cylinder turbo diesel, 80 hp (60 kW)

Auxiliary power unit

12V DC

Hydraulic tank capacity

55 gal

Fuel tank capacity

40 gal

WEIGHT



39,700 lbs



STANDARDS COMPLIANCE:

ANSI A92.5, CSA B354.4, CE Compliance, AS 1418.10

FEATURES

EASILY CONFIGURED TO MEET YOUR NEEDS

PLATFORM

Steel 8 ft (2.44 m) (standard)

Steel 6 ft (1.83 m)

Steel 6 or 8 ft (1.83 or 2.44 m) tri-entry

Steel 4 ft (1.22 m)

Steel 5 ft (1.52 m)

JIB OPTIONS

Non-jib

5 ft (1.52 m) jib boom

POWER

Deutz diesel 74 hp (55 kW)

Perkins diesel 83 hp (62 kW)

Cummins diesel 80 hp (60 kW)

DRIVE

4WD (standard)

4WS (standard)

AXLE

Extendable axles (standard)

TIRE

Rough terrain foam-filled (standard)

STANDARD FEATURES

MEASUREMENTS

S-100

106 ft (32.48 m) working height

75 ft (22.86 m) horizontal reach

750 lb (340 kg) lift capacity

PRODUCTIVITY

Self-leveling platform

Hydraulic platform rotation

Fully proportional Hall effect joystick controls

Hydraulic oil cooler

Drive enable

AC power cord to platform

Horn

Hour meter

Tilt alarm

Descent alarm

Alarm package

360 degree continuous turntable rotation

Locking low profile turntable covers

Positive traction drive

Two speed wheel motors

Configure controls to limit lift height to 80 ft

Ground control box cover

Engine status display

POWER

All engines are emissions compliant

12 V DC auxiliary power

Anti-restart engine protection

Auto engine fault shutdown

Item Options
80 hp Cummins or, 86 hp Perkins, Tier III diesel, turbocharged, water-cooled
S-100-1 (Add $1,554.00)
8 ft. tri-entry steel platform
S-100-2 (Add $595.00)
Platform swing gate
S-100-3 (Add $630.00)
6 ft. or 8 ft. platform 1/2 height mesh inserts with swing gate
S-100-4 (Add $830.00)
Air line to platform, 1/2 in. inner diameter
S-100-5 (Add $1,090.00)
Platform auxiliary top rail
S-100-6 (Add $880.00)
Biodegradable hydraulic fluid
S-100-7 (Add $4,255.00)
Basic hostile environment kit (cylinder bellows, boom wiper seals, platform and ground control box cover)
S-100-8 (Add $5,400.00)
Deluxe hostile environment (Basic hostile environment kit plus, center turntable shield, ring gear guard, tail pipe guard, engine cover flaps, air pre-cleaner)
S-100-9 (Add $7,495.00)
Diesel scrubber muffler with spark arrestor
S-100-10 (Add $3,685.00)
Intake air pre-cleaner
S-100-11 (Add $580.00)
AC generator (110V/60Hz, 3000W or 220V/50Hz, 2500W)
S-100-12 (Add $5,080.00)
Weld leads to platform - S-100&S-105
S-100-13 (Add $3,990.00)
Weld leads to platform - S-120&S-125
S-100-14 (Add $5,000.00)
Welder Ready package
S-100-15 (Add $6,615.00)
ArcPro 275 heavy duty welder package
S-100-16 (Add $11,130.00)
Cummins or Perkins (5W-40 Syn engine oil, freeze plug heater & 110V battery blanket, platform control board heater & oversized foot switch cover)
S-100-17 (Add $522.00)
Deutz (5W-40 Syn engine oil, oil pan heater & 110V battery blanket, platform control board heater & oversized foot switch cover)
S-100-18 (Add $522.00)
Solid tires
S-100-19 (Add $9,400.00)
Lockable platform control box covers
S-100-20 (Add $355.00)
Panel cradle package (requires tri-entry platform)
S-100-21 (Add $785.00)
Platform work lights (includes two 12V 36W lights)
S-100-22 (Add $915.00)
