We are your source for Articulating Booms.
Genie Lift - 2 Speed Wheel Motors
Item Details

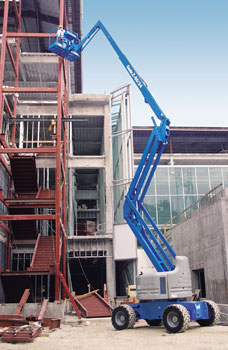

Genie Lift - 2 Speed Wheel Motors
Item Name:
Genie Lift - 2 Speed Wheel Motors
Item #:
GEN-Z-60/34WJIB2WD
Average Rating:

Product Image Gallery:

Set up fees may apply, please contact us for details.

SPECIFICATIONS



MODEL

Z-60/34

MEASUREMENTS

US

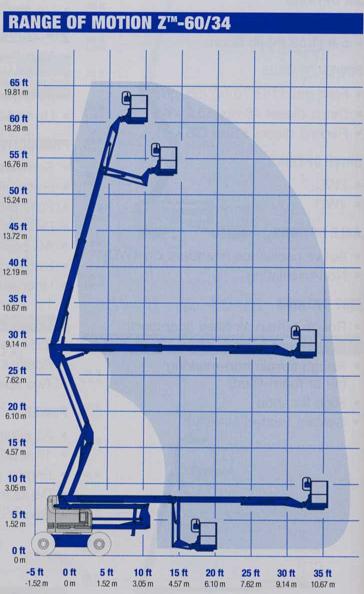

Working height maximum

66 ft 4 in

Platform height maximum

60 ft 4 in

Horizontal reach maximum

36 ft 3 in

Up and over clearance maximum

27 ft

A. Platform length – 8 ft / 6 ft  model

3 ft/ 2 ft 6 in

B. Platform width – 8 ft / 6 ft model

8 ft / 6 ft

C. Height – stowed

8 ft 10 in

D. Length – stowed

26 ft 9 in

E. Width

8 ft 1 in

F. Wheelbase

8 ft 3 in

G. Ground clearance - center

1 ft 4 in

PRODUCTIVITY



Lift capacity

500 lbs

Platform rotation

180 degrees

Vertical jib rotation

90 degrees

Turntable rotation

360 degrees continuous

Turntable tailswing

zero

Drive speed – stowed

Drive speed – raised

3.0 mph

0.68 mph

Gradeability – 2WD - stowed

25%

Gradeability – 4WD – stowed

45%

Turning radius – inside

10 ft

Turning radius – outside

19 ft 11 in

Controls

12 V DC proportional

Tires

385/65 D19.5, 12 ply

POWER



Power source

Ford DSG-423 4-cylinder gas/LPG 75 hp (56 kW)

Deutz D2011L03i 3-cylinder diesel 48 hp (35.8 kW)

Perkins 404D-22 4-cylinder diesel 51 hp (38.0 kW)

Auxiliary power unit

12V DC

Hydraulic tank capacity

45 gal

Fuel tank capacity

20 gal

WEIGHT



22,520 lbs



STANDARDS COMPLIANCE:

ANSI A92.5, CSA B354.4, CE Compliance, AS 1418.10

FEATURES

EASILY CONFIGURED TO MEET YOUR NEEDS

PLATFORM OPTIONS

Steel 8 ft (2.44 m) (standard)

Steel 6 ft (1.83 m)

Steel 6 or 8 ft (1.83 or 2.44 m) tri-entry

Steel 4 ft (1.22 m)

Steel 5 ft (1.52 m)

JIB

6 ft (1.83 m) jib boom

POWER OPTIONS

Ford gas/LPG 75 hp (56 kW)

Deutz diesel 48 hp (35.8 kW)

Perkins diesel 51 hp (38 kW)

DRIVE/STEER

2WD (standard)

4WD

AXLE

Active oscillation (standard on 4WD)

Non-oscillating

TIRE OPTIONS

Rough terrain air-filled (standard)

Rough terrain foam-filled

High flotation rough terrain

Sealant treated air-filled

STANDARD FEATURES

MEASUREMENTS

66 ft 4 in (20.39 m) working height

36 ft 3 in (11.05 m) horizontal reach

27 ft (8.23 m) up and over clearance

Up to 500 lb (227 kg) lift capacity

PRODUCTIVITY

Self-leveling platform

Hydraulic platform rotation

Fully proportional controls

Drive enable

AC power cord to platform

Horn

Hour meter

Tilt alarm

Descent alarm

360 degree continuous turntable rotation

Locking turntable covers

Zero tailswing

Positive traction drive

2 speed wheel motors

POWER

All engines are emissions compliant

12V DC auxiliary power

Engine protection package

Anti-restart engine protection

Auto engine fault shutdown

Intake air heater (Deutz engine)

Item Options
8 ft. tri-entry steel platform
Z-60/34-1 (Add $595.00)
Aircraft protection (includes platform foam padding and padded disable system)
Z-60/34-2 (Add $7,025.00)
Platform swing gate
Z-60/34-3 (Add $630.00)
6 ft. or 8 ft. platform 1/2 height mesh inserts with swing gate
Z-60/34-4 (Add $830.00)
Air line to platform, 1/2 in. inner diameter
Z-60/34-5 (Add $805.00)
Platform auxiliary top rail
Z-60/34-6 (Add $880.00)
Hydraulic oil cooler
Z-60/34-7 (Add $1,380.00)
Biodegradable hydraulic fluid
Z-60/34-8 (Add $2,930.00)
Fire resistant hydraulic fluid
Z-60/34-9 (Add $3,844.00)
Basic hostile enviornment (cylinder bellows, boom wiper seals, platform and ground control box cover)
Z-60/34-10 (Add $3,955.00)
Deluxe diesel hostile environment kit (basic hostile environment kit plus center turntable shield, ring gear guard, tail pipe guard, engine cover flaps, air pre-cleaner
Z-60/34-11 (Add $9,155.00)
Deluxe dual-fuel hostile environment kit (basic hostile environment kit plus center turntable shield, ring gear guard, tail pipe guard, engine cover flaps)
Z-60/34-12 (Add $8,615.00)
Diesel scrubber muffler with spark arrestor
Z-60/34-13 (Add $3,685.00)
Intake air-cleaner
Z-60/34-14 (Add $580.00)
AC generator (110V/60Hz, 3000W or 220V/50Hz, 2500W)
Z-60/34-15 (Add $3,815.00)
Weld leads to platform
Z-60/34-16 (Add $1,760.00)
Welder Ready package (includes hydraulic oil cooler)
Z-60/34-17 (Add $7,995.00)
ArcPro 275 heavy duty welder package (includes hydraulic oil cooler)
Z-60/34-18 (Add $12,510.00)
Engine gauge package (oil pressure, temp & amp)
Z-60/34-19 (Add $400.00)
Ford or Perkins (5W-40 Syn engine oil, freeze plug heater & 110V battery blanket) platform control board heater & oversized foot switch cover
Z-60/34-20 (Add $250.00)
Deutz (5W-40 Syn engine oil, 2nd intake air heater, oil pan heater & 110V battery blanket) platform control board heater & oversized foot switch cover
Z-60/34-21 (Add $250.00)
Rough terrain foam-filled tires
Z-60/34-22 (Add $3,895.00)
Rough terrain, non-marking tires
Z-60/34-23 (Add $3,060.00)
Rough terrain, non-marking foam-filled tires
Z-60/34-24 (Add $6,375.00)
High floation tires
Z-60/34-25 (Add $6,290.00)
Tire sealant (air-filled tires only)
Z-60/34-26 (Add $530.00)
Alarm package (flashing beacon and travel alarm)
Z-60/34-27 (Add $475.00)
Lockable platform control box cover
Z-60/34-28 (Add $355.00)
Tool tray
Z-60/34-29 (Add $250.00)
Panel cradle package (requires 6 ft. tri-entry platform)
Z-60/34-30 (Add $785.00)
Platform work lights (includes two 12V 36W lights)
Z-60/34-31 (Add $915.00)
LPG tank, 33.5 lb capacity (Ford engine only)
Z-60/34-32 (Add $510.00)
