We are your resource for Trailer Mounted Booms.
Genie Lift - 24V DC
Item Details

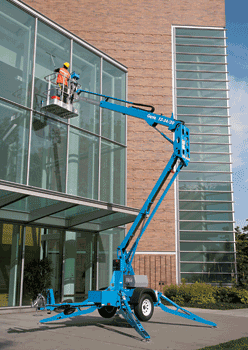

Genie Lift - 24V DC
Item Name:
Genie Lift - 24V DC
Item #:
GEN-TZ-34/20
Average Rating:

Product Image Gallery:

Set up fee may apply, please contact us for details.

SPECIFICATIONS



MODEL

TZ-34/20

MEASUREMENTS

US

Working height

40 ft

Platform height

34 ft

Entry height - extended

6.4 ft

Horizontal reach

18 ft 4 in

Clear outreach

13 ft 5 in

Up and over clearance

16 ft 1 in

A. Platform length

2 ft 2.8 in

B. Platform width

3 ft 8 in

C. Height – stowed

6 ft 4.5 in

D. Length – stowed

18 ft .5 in

E. Width

4 ft 9.1 in

F. Ground clearance – center

9.5 in

G. Length – outrigger footprint

10 ft 8.4 in

H. Width – outrigger footprint

11 ft 9.4 in

PRODUCTIVITY



Lift capacity (ANSI, CSA) – standard

500 lbs

Lift capacity (ANSI, CSA) – rotating platform

460 lbs

Lift capacity (CE/AUS) – standard

440 lbs

Lift capacity (CE/AUS) – rotating platform

400 lbs

Self leveling platform

standard

Platform rotation option

90 degree mechanical

AC power to platform

Standard

Turntable rotation

359 degree non-continuous

Outrigger leveling capability

11 degree

Towing speed rate

60 mph

Tongue weight – ANSI, CSA

315 lbs

Tongue weight – CE

163 lbs

Surge and parking brakes

Standard

Controls

Variable speed system

Tire size

ST 205/75 R15

Coupler

2 in (5.08 cm) hitch coupler standard

POWER



Power source

24V DC (four 6V 225 Ah batteries)

Hydraulic tank capacity

3.85 gal

Hydraulic system capacity

4.5 gal

WEIGHT



ANSI, CSA, Australia

3,155 lbs

CE

3,170 lbs

STANDARDS COMPLIANCE:

ANSI A92.2, CSA C225, CE Compliance, AS 1418.10

FEATURES

EASILY CONFIGURED TO MEET YOUR NEEDS

PLATFORM OPTIONS

Aluminum 26.8 x 44 in (.68 x 1.12 m)

Platform overload system (CE)

90 degree mechanical platform rotation

POWER

24V DC power source

COUPLER OPTIONS

Combination hitch

2 in (5.08 cm) ball coupler

2.31 in (5.87 cm) ball coupler

2.5 in (6.53 cm) I.D. pintle ring coupler

Clevis coupler

TIRE OPTIONS

Item Options
90 degree mechanical platform rotation
TZ-34/20-1 (Add $2,105.00)
Combination hitch (specify desired couplers from below)
TZ-34/20-2 (Add $285.00)
2 inch ball coupler (lever lock, twist lock, or Bulldog)
TZ-34/20-3 (Add $225.00)
2-5/16 inch ball coupler (lever lock or Bulldog)
TZ-34/20-4 (Add $225.00)
2-1/2 inch (6.52 cm) I.D. pintle ring coupler
TZ-34/20-5 (Add $225.00)
Clevis coupler
TZ-34/20-6 (Add $225.00)
Wheel chocks
TZ-34/20-7 (Add $225.00)
Tool tray
TZ-34/20-8 (Add $250.00)
Spare tire
TZ-34/20-9 (Add $495.00)
Operational warning light package
TZ-34/20-10 (Add $225.00)
Non-marking outrigger foot pads
TZ-34/20-11 (Add $300.00)
Battery charge indicator
TZ-34/20-12 (Add $580.00)
Horn
TZ-34/20-13 (Add $225.00)
