We are your resource for Trailer Mounted Booms.
Genie Lift - Hydraulic Out Riggers Hybrid
Item Details

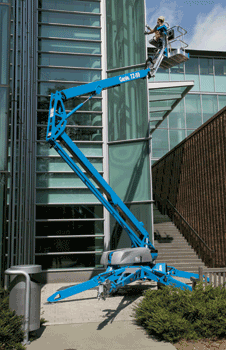

Genie Lift - Hydraulic Out Riggers Hybrid
Item Name:
Genie Lift - Hydraulic Out Riggers Hybrid
Item #:
GEN-TZ-50Hybrid
Average Rating:

Product Image Gallery:

Set up fee may apply, please contact us for details.

SPECIFICATIONS



MODEL

TZ-50

MEASUREMENTS

US

Working height

55 ft 6 in

Platform height

49 ft 6 in

Entry height

1 ft 8 in

Horizontal reach

29 ft 1 in

Clear outreach

23 ft 1 in

Up and over clearance

22 ft

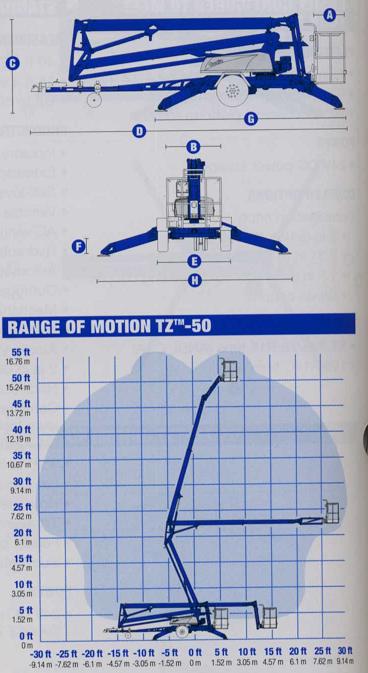

A. Platform length

2 ft 2.8 in

B. Platform width

3 ft 8 in

C. Height – stowed

6 ft 10 in

D. Length – stowed

23 ft 6 in

E. Width

5 ft 6 in

F. Ground clearance – center

10 in

G. Length – outrigger footprint

14 ft 4 in

H. Width – outrigger footprint

14 ft 4 in

PRODUCTIVITY



Lift capacity (ANSI, CSA) – standard

500 lbs

Lift capacity (ANSI, CSA) – rotating platform

500 lbs

Lift capacity (CE/AUS) – standard

440 lbs

Lift capacity (CE/AUS) – rotating platform

440 lbs

Jib boom

4 ft 1 in

Jib working range

135 degree

Self leveling platform

2.5 degree standard

Platform rotation option

160 degree hydraulic

AC power to platform

Standard

Turntable rotation

359 degree non-continuous

Outrigger leveling capability

10 degree

Drive speed

0.85 mph

Gradeability

20%

Towing speed rate

60 mph

Tongue weight – ANSI, CSA

400 lbs

Tongue weight – CE

220 lbs

Surge and parking brakes

Standard

Controls

Variable speed system

Tires – ANSI, CSA

ST 225/75 R15

Tires – CE

215 R14C

Coupler

2 in (5.08 cm) hitch coupler standard

POWER



Power source – standard

24V DC (four 6V 225 Ah batteries)

Power source – drive option

24V DC (four 6V 244 Ah batteries)

Power source – option

Hybrid DC/Gas Honda 5.5 hp (4.1 kW)

Fuel tank capacity

.95 gal

Hydraulic tank capacity

4.75 gal

Hydraulic system capacity

8.0 gal

WEIGHT



ANSI, CSA, Australia

4,400 lbs

CE

4,464 lbs

STANDARDS COMPLIANCE:

ANSI A92.2, CSA C225, CE Compliance, AS 1418.10

FEATURES

EASILY CONFIGURED TO MEET YOUR NEEDS

PLATFORM OPTIONS

Aluminum 26.8 x 44 in (.68 x 1.12 m)

160 degree hydraulic platform rotation

POWER OPTIONS

24V DC power source

Hybrid Honda 5.5 Hp (4.1 kW) 45 amp charging system

DRIVE

Drive and set option (ANSI, CSA, AUS)

Drive only (CE)

COUPLER OPTIONS

Combination hitch

2 in (5.08 cm) ball coupler

2.31 in (5.87 cm) ball coupler

2.5 in (6.53 cm) I.D. pintle ring coupler

Clevis coupler

TIRE OPTIONS

ST 225/75 R15 tires (ANSI, CSA)

215 R14C tires (CE)

STANDARD FEATURES

MEASUREMENTS

55 ft 6 in (17.09 m) working height

29 ft 2 in (8.89 m) horizontal reach

Up to 500 lb (227 kg) lift capacity

PRODUCTIVITY

Industry leading working envelope

Extension boom

Self-leveling platform

4 ft jib with 135 degree working range

AC wiring to platform

Hydraulic outriggers

Automatic 10 degree leveling system

Outrigger interlocks

Mechanical parking brake

Hydraulic surge brakes

Auxiliary pump down

Combination hitch with coupler lever lock

Dual jockey wheels

359 degree non-continuous turntable rotation

Easy to access batteries

Hour meter

Tilt alarm / sensor

Illuminated outrigger indicators

POWER

24V DC power source (four 6V 225 Ah batteries)



Item Options
Drive and set option
TZ-50-1 (Add $8,495.00)
90 degree mechanical platform rotation
TZ-50-2 (Add $2,105.00)
2 inch ball coupler (lever lock, twist lock or Bulldog)
TZ-50-3 (Add $225.00)
2-5/16 inch ball coupler (lever lock or Bulldog)
TZ-50-4 (Add $225.00)
2-1/2 inch (6.53 cm) I.D. pintle ring couple
TZ-50-5 (Add $225.00)
Clevis coupler
TZ-50-6 (Add $225.00)
Non-marking outrigger footpads
TZ-50-7 (Add $300.00)
Tool tray
TZ-50-8 (Add $250.00)
Operational warning light package (flashing beacon)
TZ-50-9 (Add $255.00)
Spare tire
TZ-50-10 (Add $655.00)
Wheel chocks
TZ-50-11 (Add $225.00)
Ladder option
TZ-50-12 (Add $560.00)
Battery charge indicator (BCI)
TZ-50-13 (Add $660.00)
