You can count on us for your Telehandlers needs.
Genie Lift - 21 FT. Reach
Item Details

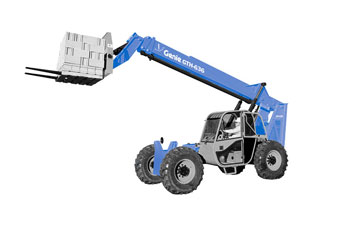

Genie Lift - 21 FT. Reach
Item Name:
Genie Lift - 21 FT. Reach
Item #:
GEN-GTH-636
Average Rating:

Product Image Gallery:

Set up fees may apply, please contact us for details.

Specifications



Model

GTH-636

Measurements

US

Maximum lift height

36 ft

Reach

21 ft

Reach at maximum height

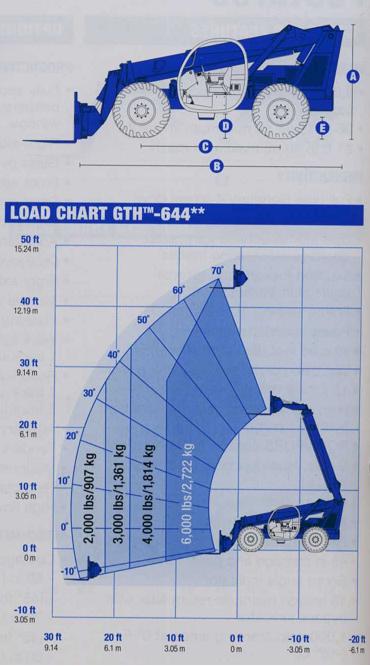

A. Height, stowed

B. Length, stowed (without forks)

2 ft 11 in

8 ft 4 in

18 ft 5 in

Width

C. Wheelbase

D. Ground clearance, center

E. Ground clearance, axle

8 ft 6 in

10 ft 4 in

1 ft 5 in

1 ft 5 in

Fork cross section

2 x 4 in

Productivity



Maximum lift capacity

6,000 lbs

Lift capacity at maximum height

6,000 lbs

Lift capacity at maximum reach

2,000 lbs

Drive speed

18 mph

Boom up/down

13/17 seconds

Boom extend/retract

7/10 seconds

Draw bar pull

19,200 lbs

Turning radius, outside (4WS)

14 ft 5 in

Auxiliary hydraulic flow

3-7 gpm

Auxiliary hydraulic pressure

2,800 psi

Tires, standard size

13 x 24 in, 12 ply

Power



Power Source

Perkins 1104C-44T turbo-charged diesel 99 hp (73.8 kW)

John Deere 4045TF270 4 cylinder turbo-charged diesel 99 hp (73.8 kW)

Electrical system

System voltage 12 volt

Alternator 95 amp

Battery 1000 CCA at 0 degree F (-18 degree C)

Hydraulic tank capacity

34 gal

Hydraulic system capacity (w/tank)

50 gal

Fuel tank capacity

30 gal

Weight



Weight

21,000 lbs

Standards Compliance



ASME B 56.6, ISO 3471, ISO 3449



Features

Standard Features

Measurements

6,000 lb (2,722 kg) maximum lift capacity

36 ft (10.97 m) maximum lift height

21 ft (6.40 m) maximum reach

Productivity

Full time planetary 4-wheel drive

4WS

Operator selectable front, crab, coordinated steering modes

Frame leveling 10 degree side to side

3-speed forward and reverse powershift transmission

Power assisted steering

Inboard wet disc service brakes

Wet disc spring applied parking brake

13 x 24 in 12-ply tires

High efficiency/variable displacement hydraulic pump

ROPS/FOPS canopy (ISO compliant)

Single, multi-function, proportional joystick

Machine level indicator

Full instrumentation

48 in carriage and pallet forks

Boom angle indicator

Rear window

10 micron hydraulic return filter with bypass indicator

1,000 cold cranking amps at 0 degree F (-18 degree C)

Reverse motion alarm

Item Options
Fully enclosed cab (includes full glass, heater, defroster, wiper, washer, right side window, split door)
GTH-636-1 (Add $3,357.00)
Glass over skylight bars (for open canopy)
GTH-636-2 (Add $385.00)
Front steel mesh screen (for open canopy)
GTH-636-3 (Add $358.00)
Right side steel mesh screen (for open canopy)
GTH-636-4 (Add $276.00)
Cab heater (for open canopy)
GTH-636-5 (Add $467.00)
Ajustable upholstered suspension seat
GTH-636-6 (Add $402.00)
Dual joystick controls
GTH-636-7 (Add $1,214.00)
Front axle differential lock
GTH-636-8 (Add $297.00)
Flashing beacon
GTH-636-9 (Add $144.00)
Work lights (2 cab-mounted front, 1 back-up, 1 stop/tail)
GTH-636-10 (Add $373.00)
Road lights (2 cab-mounted front, 1 back-up, 2 rear stop/turn/tail, 2 front turn)
GTH-636-11 (Add $815.00)
Auxiliary hydraulic circuit to boom tip (specifiy 3 or 7 GPM)
GTH-636-12 (Add $1,572.00)
Fenders-complete set
GTH-636-13 (Add $531.00)
Mounted disposable fire extinguisher
GTH-636-14 (Add $124.00)
3 in. retractable seat belt (required for California customers)
GTH-636-15
Electric ether aid (John Deere engine)
GTH-636-16 (Add $256.00)
Electric block heater
GTH-636-17 (Add $150.00)
Foam-filled tires (with standard tires)
GTH-636-18 (Add $2,847.00)
Foam-filled rock lug tires
GTH-636-19 (Add $4,421.00)
14 ft. variable reach truss boom (specify type, slip on forks or Quick-Attach)
GTH-636-20 (Add $1,883.00)
1 cu. yd. light duty rubbish bucket (specify type, slip on forks or Quick-Attach)
GTH-636-21 (Add $1,944.00)
60 in. pallet forks (set of two) 2 x 4 x 60 in.
GTH-636-22 (Add $220.00)
60 in. full taper forks (set of two) 2-1/4 x 5 x 60 in.
GTH-636-23 (Add $613.00)
72 in. pallet forks (set of two) 2 x 4 x 72 in.
GTH-636-24 (Add $472.00)
60 in. lumber forks (set of two) 1-3/4 x 7 x 60 in.
GTH-636-25 (Add $1,434.00)
Set of 4 cubing tines, 2 x 2 48 in.
GTH-636-26 (Add $508.00)
Set of 4 cubing tines, 2 x 2 x 48 in. (in addition to standard pallet forks)
GTH-636-27 (Add $1,947.00)
60 in. pin-on carriage
GTH-636-28 (Add $390.00)
72 in. pin-on carriage
GTH-636-29 (Add $475.00)
48 in. Quick-Attach carriage
GTH-636-30 (Add $1,431.00)
60 in. Quick-Attach carriage
GTH-636-31 (Add $1,622.00)
72 in. Quick-Attach carriage
GTH-636-32 (Add $1,701.00)
48 in. rotating carriage (pin-on, includes auxiliary hydraulic circuit)
GTH-636-33 (Add $3,586.00)
60 in. rotating carriage (pin-on, includes auxiliary hydraulic circuit)
GTH-636-34 (Add $3,650.00)
72 in. rotating carriage (pin-pn, includes auxiliary hydraulic circuit)
GTH-636-35 (Add $3,712.00)
48 in. rotating carriage (Quick-Attach, includes auxiliary hydraulic circuit)
GTH-636-36 (Add $5,098.00)
60 in. rotating carriage (Quick-Attach, includes auxiliary hydraulic circuit)
GTH-636-37 (Add $5,163.00)
72 in. rotating carriage (Quick-Attach, includes auxiliary hydrauilic circuit)
GTH-636-38 (Add $5,224.00)
60 in. swing carriage (pin-on, includes auxiliary hydraulic circuit)
GTH-636-39 (Add $6,365.00)
72 in. swing carriage (pin-on, includes auxiliary hydraulic circuit)
GTH-636-40 (Add $6,426.00)
60 in. swing carriage (Quick-Attach, includes auxiliary hydraulic circuit)
GTH-636-41 (Add $7,590.00)
72 in. swing carriage (Quick-Attach, includes auxiliary hydraulic circuit)
GTH-636-42 (Add $7,655.00)
