You can count on us for your Telehandlers needs.
Genie Lift - 8,000 lbs. Capacity
Item Details
Genie Lift - 8,000 lbs. Capacity
Item Name:
Genie Lift - 8,000 lbs. Capacity
Item #:
GEN-GTH-844
Average Rating:

Product Image Gallery:

Set up charge may apply, please contact us for details.

Specifications



Model

GTH-844

Measurements

US

Maximum lift height

44 ft

Reach

27 ft

Reach at maximum height

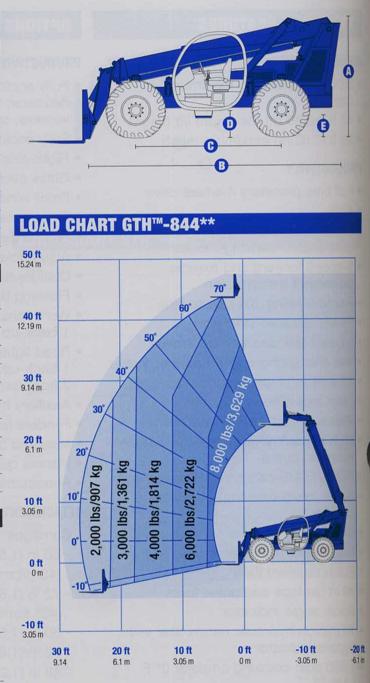

A. Height, stowed

B. Length, stowed (without forks)

3 ft 6 in

8 ft 11 in

20 ft

Width

C. Wheelbase

D. Ground clearance, center

E. Ground clearance, axle

8 ft 6 in

10 ft 10 in

1 ft 5 in

1 ft 5 in

Fork cross section

2 x 4 in

Productivity



Maximum lift capacity

8,000 lbs

Lift capacity at maximum height

6,000 lbs

Lift capacity at maximum reach

2,000 lbs

Drive speed

17 mph

Boom up/down

15/11 seconds

Boom extend/retract

18/14 seconds

Draw bar pull

19,200 lbs

Turning radius, outside (4WS)

14 ft 9 in

Auxiliary hydraulic flow

3-7 gpm

Auxiliary hydraulic pressure

3,000 psi

Tires, standard size

13 x 24 in, 12 ply

Power



Power Source

Perkins 1104C-44T turbo-charged diesel 99 hp (73.8 kW)

John Deere 4045TF270 4 cylinder turbo-charged diesel 99 hp (73.8 kW)

Deutz BF 4 2012 99 hp turbo-charged diesel

Electrical system

System voltage 12 volt

Alternator 95 amp

Battery 1000 CCA at 0 degree F (-18 degree C)

Hydraulic tank capacity

34 gal

Hydraulic system capacity (w/tank)

50 gal

Fuel tank capacity

30 gal

Weight



Weight

22,500 lbs

Standards Compliance



ANME B 56.6, ISO 3471, ISO 3449



Features

Standard Features

Measurements

8,000 lb (3,629 kg) maximum lift capacity

44 ft 10 in (13.41 m) maximum lift height

27 ft (8.23 m) maximum reach

Productivity

Full time planetary 4-wheel drive

4WS

Operator selectable front, crab, coordinated steering modes

Frame leveling 10 degree side to side

3-speed forward and reverse powershift transmission

Power assisted steering

Inboard wet disc service brakes

Wet disc spring applied parking brake

13 x 24 in 12-ply tires

Front axle differential lock

Rear window

Rear axle lock-up

High efficiency/variable displacement hydraulic pump

ROPS/FOPS canopy (ISO compliant)

Single, multi-function, proportional joystick

Machine level indicator

Full instrumentation

48 in carriage and pallet forks

Boom angle indicator

10 micron hydraulic return filter with bypass indicator

1,000 cold cranking amps at 0 degree F (-18 degree C)

Reverse motion alarm





Item Options
Fully enclosed cab (includes full glass, heater, defroster, wiper, washer right side, sliding window, split door)
GTH-844-1 (Add $6,040.00)
Fully enclosed cab with air conditioning (includes full glass, heater, defroster wiper, washer, right side sliding window, and split door)
GTH-844-2 (Add $11,550.00)
Cab heater (for open canopy)
Right side steel mesh screen (for open canopy)
GTH-844-4 (Add $500.00)
Glass over skylight bars (for open canopy)
GTH-844-5 (Add $695.00)
Front steel mesh screen (for open canopy)
GTH-844-6 (Add $625.00)
Adjustable upholstered suspension seat
GTH-844-7 (Add $725.00)
Dual joystick controls
GTH-844-8 (Add $2,185.00)
Flashing beacon
GTH-844-9 (Add $260.00)
Work lights (2 cab front mounted, 1 back-up, 2 stop-tail)
GTH-844-10 (Add $670.00)
Road lights (2 cab front mounted, 1 back-up, 2 rear stop/turn/tail, 2 front turn)
GTH-844-11 (Add $1,470.00)
Auxiliary hydraulic circuit to boom tip (specify 3 or 7 GPM)
GTH-844-12 (Add $2,830.00)
Fenders-complete set
GTH-844-13 (Add $955.00)
Mounted disposable fire extinguisher
GTH-844-14 (Add $225.00)
3 in. retractable seat belt (required for California customers)
GTH-844-15
Electric ether aid (John Deere engine)
GTH-844-16 (Add $460.00)
Electric block heater
GTH-844-17 (Add $270.00)
Intake air heater and block heater
GTH-844-18 (Add $1,073.00)
Air-filled tires (includes extra counterweight)
GTH-844-19 (Add $4,300.00)
Foam-filled rough terrain tires
GTH-844-20 (Add $5,120.00)
Foam-filled rock lug tires
GTH-844-21 (Add $7,955.00)
14. ft. variable reach truss boom (specify slip-on forks or Quick-Attach)
GTH-844-22 (Add $3,390.00)
1 cu. yd. light duty rubbish bucket (specify slip-on forks or Quick-Attach)
GTH-844-23 (Add $3,500.00)
Set of two 60 in. pallet forks, 2 x 5 x 60 in. in.
GTH-844-24 (Add $510.00)
Set of two 60 in. full taper forks, 2-1/4 x 5 x 60 in. in.
GTH-844-25 (Add $1,125.00)
Set of two 72 in. pallet forks, 2 x 5 x 72 in. in.
GTH-844-26 (Add $980.00)
Set of two 60 in. lumber forks, 1-3/4 x 7 x 60 in. in.
GTH-844-27 (Add $2,580.00)
Set of 4 cubing tines, 2 x 2 x 48 in.
GTH-844-28 (Add $915.00)
Set of 4 cubing tines, 2 x 2 x 48 in. (in addition to standard pallet forks)
GTH-844-29 (Add $3,505.00)
60 in. pin-on carriage
GTH-844-30 (Add $705.00)
72 in. pin-on carriage
GTH-844-31 (Add $855.00)
48 in. Quick-Attach carriage
GTH-844-32 (Add $2,575.00)
60 in. Quick-Attach carriage
GTH-844-33 (Add $2,920.00)
72 in. Quick-Attach carriage
GTH-844-34 (Add $3,060.00)
48 in. rotating carriage (pin-on, includes auxiliary hydraulic circuit)
GTH-844-35 (Add $6,455.00)
60 in. rotating carriage (pin-on, includes auxiliary hydraulic circuit)
GTH-844-36 (Add $6,570.00)
72 in. rotating carriage (pin-on, includes auxiliary hydraulic circuit)
GTH-844-37 (Add $6,680.00)
48 in. rotating carriage (Quick-Attach, includes auxiliary hydraulic circuit)
GTH-844-38 (Add $9,175.00)
60 in. rotating carriage (Quick-Attach, includes auxiliary hydraulic circuit)
GTH-844-39 (Add $9,290.00)
72 in. rotating carriage (Quick-Attach, includes auxiliary hydraulic circuit)
GTH-844-40 (Add $9,405.00)
60 in. swing carriage (pin-on, includes auxiliary hydraulic circuit)
GTH-844-41 (Add $11,455.00)
72 in. swing carriage (pin-on, includes auxiliary hydraulic circuit)
GTH-844-42 (Add $11,565.00)
60 in. swing carriage (Quick-Attach, includes auxilary hydraulic circuit)
GTH-844-43 (Add $13,665.00)
72 in. swing carriage (Quick-Attach, includes auxilary hydraulic circuit)
GTH-844-44 (Add $13,775.00)
