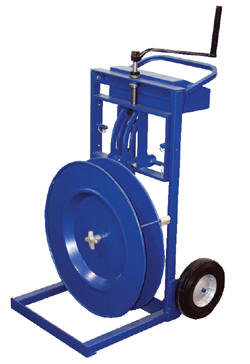

This unique cart allows the operator to apply strapping both vertically and horizontally around the load. For use with both steel and poly strapping. The maximum core width is 5", while the minimum core width is 21⁄2". Core diameter is 16" with a minimum of 133⁄4". To use, simply engage outer detents (disengaging inner) and turn the removable
handle until strap is in the horizontal position. Once in the horizontal position, disengage the outer detents and engage the inner detents. The strap can now be raised and lowered from 28" down to 8" with the same turn handle. Each unit comes standard with 10" x 3" pneumatic wheels. The equipment tray measures 16"W x 51⁄2"D. Strapping is not included.
Strapping Acceptable: Steel & Poly
Overall Size: 27"W x 27"D x 42"H
Feed Strap Height: 8" to 28"
Standard Material: 24" Max. Diameter
Net Weight: 140 lbs.
