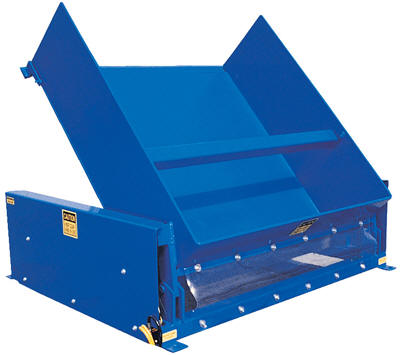

The model GLT-4000 is the best product for tilting applications which require the use of a pallet truck for loading and unloading.  The Ground Lift Tilter rotates containers up to 45º from the floor level to provide better access for workers.  A removable positioning bar is provided for use with smaller containers.  Designed with worker safety in mind, pinch point guards are provided on all four sides of the unit.  The GLT-4000 is powered by a remote 2 HP, 208-230/ 460 Volt motor complete with a protective cover.  Standard control is a NEMA 4 push button hand control which operates on 24V for maximum operator safety.  Optional foot pedal control with guard is available.

Standard Features:

• Fused 24V, NEMA-4 hand control with two buttons
• Industrial quality, 56 frame, 2 HP motor delivers best torque with minimal amperage draw and maximum life.
• Electric pinch point guards on lip edge and sides of platform protect personnel.
• Upper travel limit switch

Platform Size: 48"W x 50"L

Capacity: 4,000 lbs.

Level Height: 1/2"

Maximum Tilt: 45 Degrees

Power Unit: External

Net Weight: 1315 lbs.
