There Are No Wheels On This Unit.

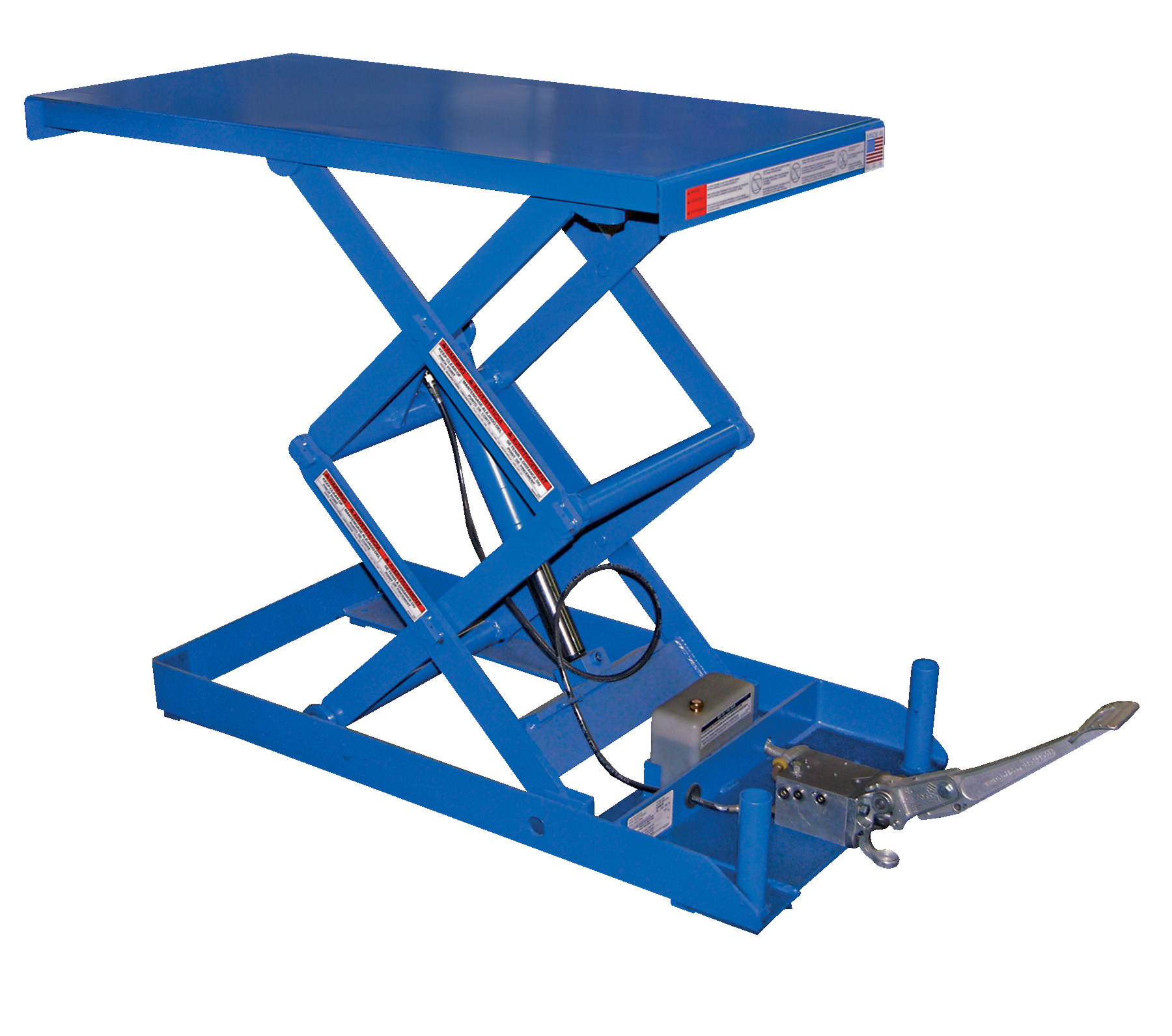

Model SCTAB-750D is a single-speed foot pump hydraulic scissor table designed as a stationary ergonomic work stage.  Each unit comes with a foot pump to raise the table and pressure compensated flow valve for controlled lowering.   The deck, which is 20" wide x 40" long, is constructed of 10 gauge steel and will pivot up for easy maintenance.  The raised height of the table is 35½" with a lowered height of 7".  The single scissor unit is rated at 750 pounds capacity.  Safety features include an internal brass velocity fuse in the cylinder which prevents the lift from failing in the event of sudden loss of hydraulic pressure.   A torsion bar is added for increased side-to-side stability.  The stationary table can be made portable by adding the caster and handle kit, model CHK-1.   Table can be optionally equipped with either a remote A/C, D/C, Factory Air/Hydraulic Oil power unit or a manual two speed hydraulic foot pump.  The SCTAB-750D is constructed of steel and painted blue.

Platform Size: 20" W x 40"L

Capacity: 750 lbs.

Raised Height: 35"

Lowered Height: 7"

Net Weight: 284 lbs.
